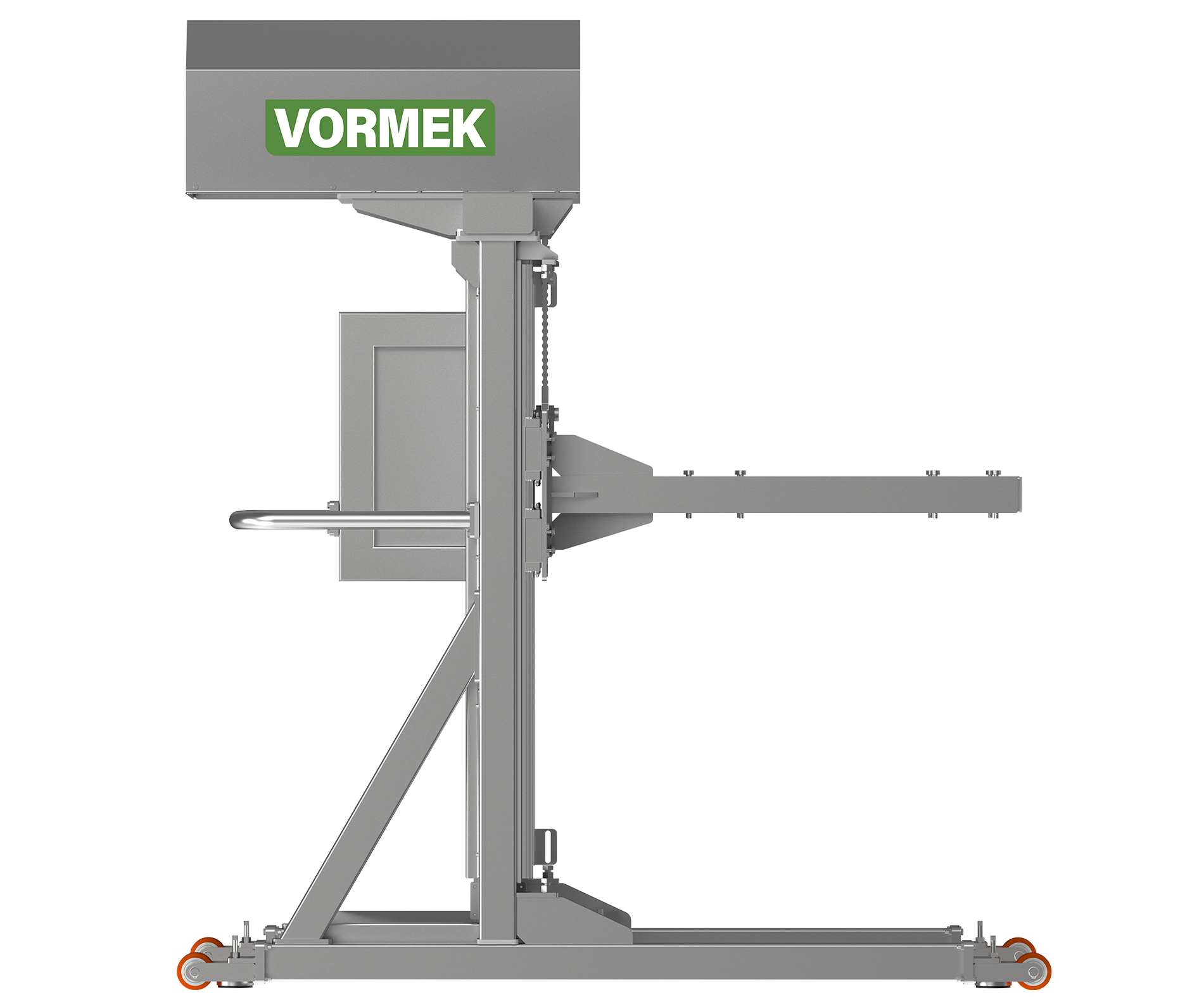

Introduction to the Vormek LiftAssist VFL-500
In food industry packaging lines, equipment that comes into direct contact with product must deliver not only precise, reliable performance but also the highest standards of hygiene, cleanability, and ease of maintenance.
One of the persistent challenges in lines equipped with fillers is achieving thorough, complete cleaning after production ends. Filler equipment—which handles food products directly—requires full, fast, and hygienic cleaning. However, because the filler is typically positioned at height, operators cannot easily access all its components.
The LiftAssist solves this problem: after production, the filler is lowered from the machine and brought to ground level, giving operators full access for cleaning. Additionally, the filler is washed separately, so cleaning residues never fall onto the packaging machine—preventing contamination or damage and making the process fully professional and systematic.
The LiftAssist is a specialized system designed precisely for this purpose: safely moving the filler between its working position and its cleaning position.
The technical philosophy behind this product: Up for Work, Down for Wash – Lift to Fill.
The Problem
In many packaging lines designed and built by Vormek, the filler is mounted above the packaging machine. During production, it handles product dosing and filling. But when production ends, a critical question arises: How should this equipment—which has been in direct contact with food—be cleaned?
Challenges of Cleaning in Place (CIP at height):
| Challenge | Description |
|---|---|
| Food residue spillage | Residue falls onto the main packaging machine during cleaning |
| Water and detergent ingress | Cleaning agents penetrate sensitive packaging machine components |
| Limited operator access | Operators cannot fully reach all filler sections |
| Reduced cleaning quality | Cleaning at height is never as thorough as at ground level |
The LiftAssist was designed to eliminate these exact problems.
From Height to Ground – A Smart, Hygienic Transfer
The LiftAssist offers an intelligent solution to the daily challenge of automatic filling in food packaging: safely and hygienically moving the filler between two critical points—the production position and the cleaning position.
From a mechanical engineering perspective, this system is not complex, but rather a simple, clever, and deeply reliable solution.

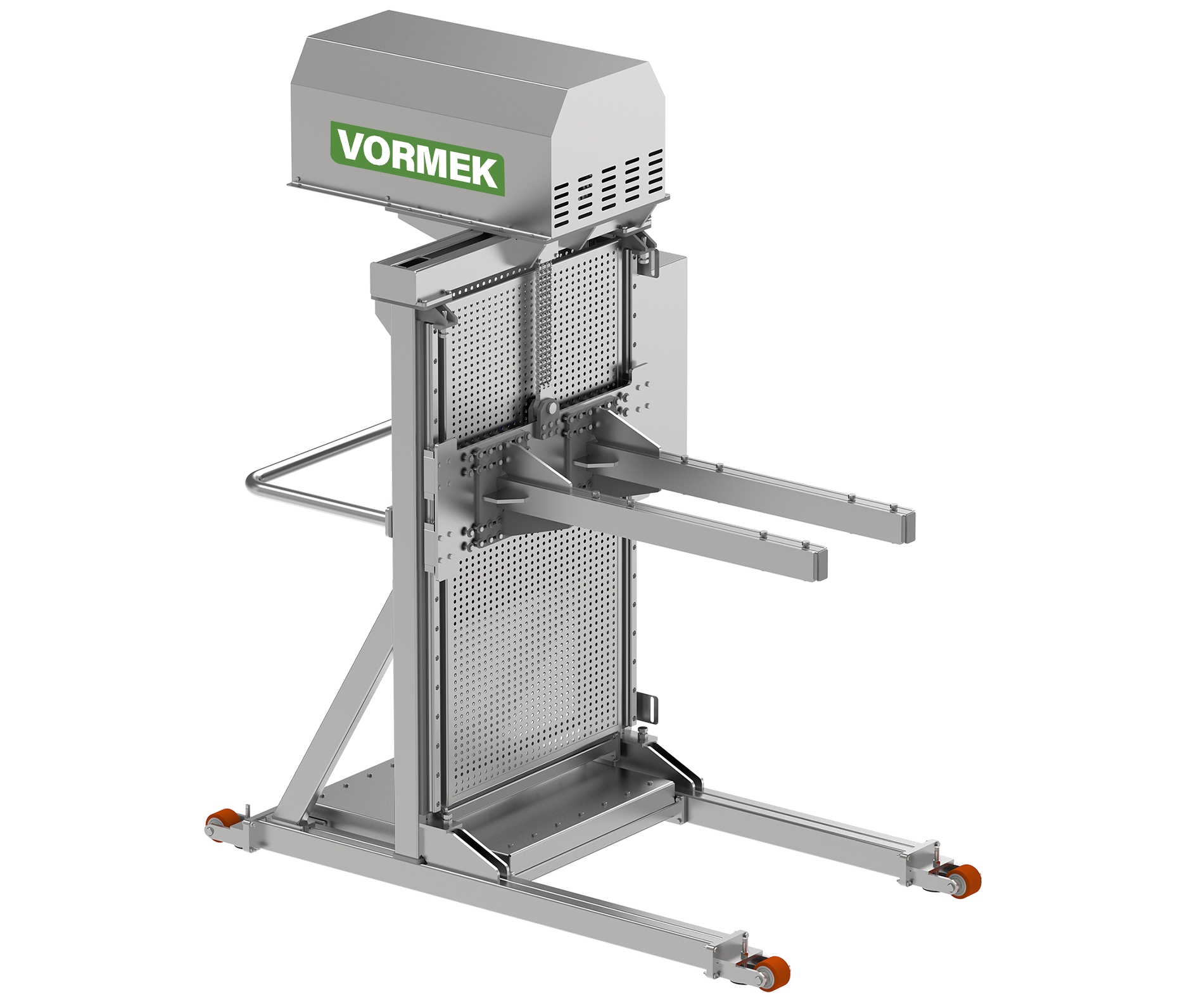

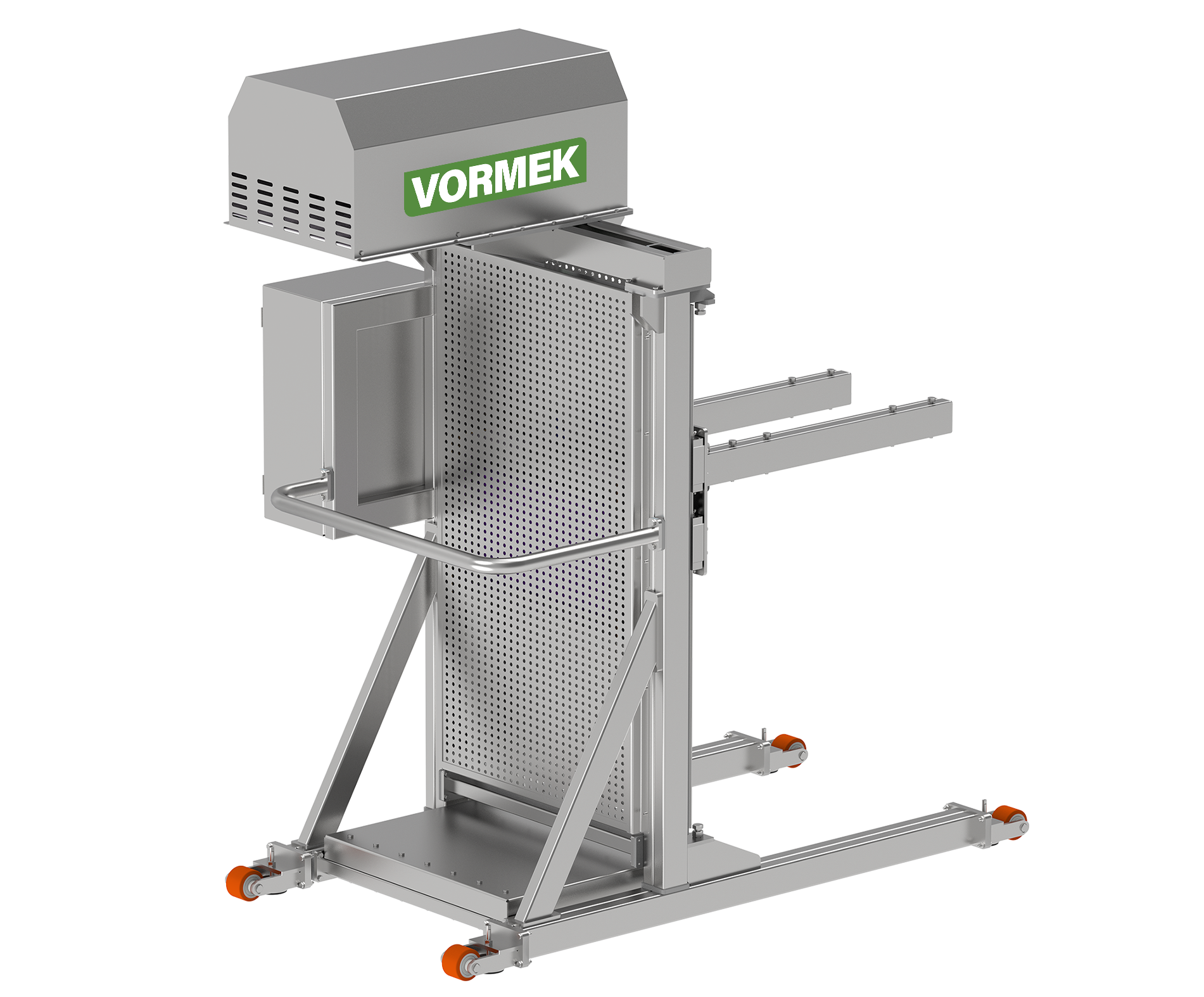

Lifting Mechanism
Vertical movement is achieved through an industrial chain mechanism. A durable stainless steel chain, working with precision sprockets and an industrial electric motor, smoothly and securely guides the filler support arms upward or downward.
The filler’s center of gravity has been carefully calculated and designed into the system to ensure:
- Perfect balance during transfer
- Prevention of tipping or instability
- Controlled, shock-free movement without equipment damage
Material Selection
Since this equipment operates in food industry environments, material choice is critical. All components are manufactured from 304 stainless steel—the recognized standard for food processing equipment. This material offers excellent resistance to moisture, continuous washdown, cleaning agents, and corrosion.
Operational Advantages
During production, the filler rests securely on the lifting system’s support arms. The system precisely raises the filler into its designated position on the packaging machine, where it is fully stabilized, and production begins.
The system’s true value becomes clear when production ends:
The LiftAssist:
- Gently lifts the filler off the packaging machine
- Lowers it smoothly
- Positions it at a convenient ground-level location
At this point, the operator has complete access to every part of the filler for thorough cleaning. This simple yet highly intelligent process makes a significant difference in line performance.
Hygiene and Safety
In the food industry, cleaning is not just about surface appearance. True cleaning means:
- Full access to all product-contact surfaces
- Complete removal of food residues
- Prevention of cross-contamination
- Compliance with hygiene standards
The LiftAssist meets all these requirements by transferring the filler to ground level, enabling thorough, complete cleaning.
Key Technical and Operational Benefits
| Benefit | Description |
|---|---|
| Safe filler transfer | Precise, reliable movement between working and cleaning positions without damage |
| Hygienic cleaning enabled | Ground-level positioning gives operators full access |
| Improved operator safety and comfort | Easy access to all filler parts for cleaning, service, and maintenance |
| Packaging machine protection | Prevents food residue and water from falling onto the main machine during cleaning |
| Full stainless steel construction | 304 stainless steel resistant to corrosion, moisture, and cleaning agents |
| Stainless steel chain lifting system | Robust mechanism for smooth, controlled filler movement |
| Adjustable mechanism | Compatible with various Vormek filler types; quick adjustment without major modifications |
| Engineered center of gravity | Maintains perfect balance during transfer; prevents tipping |

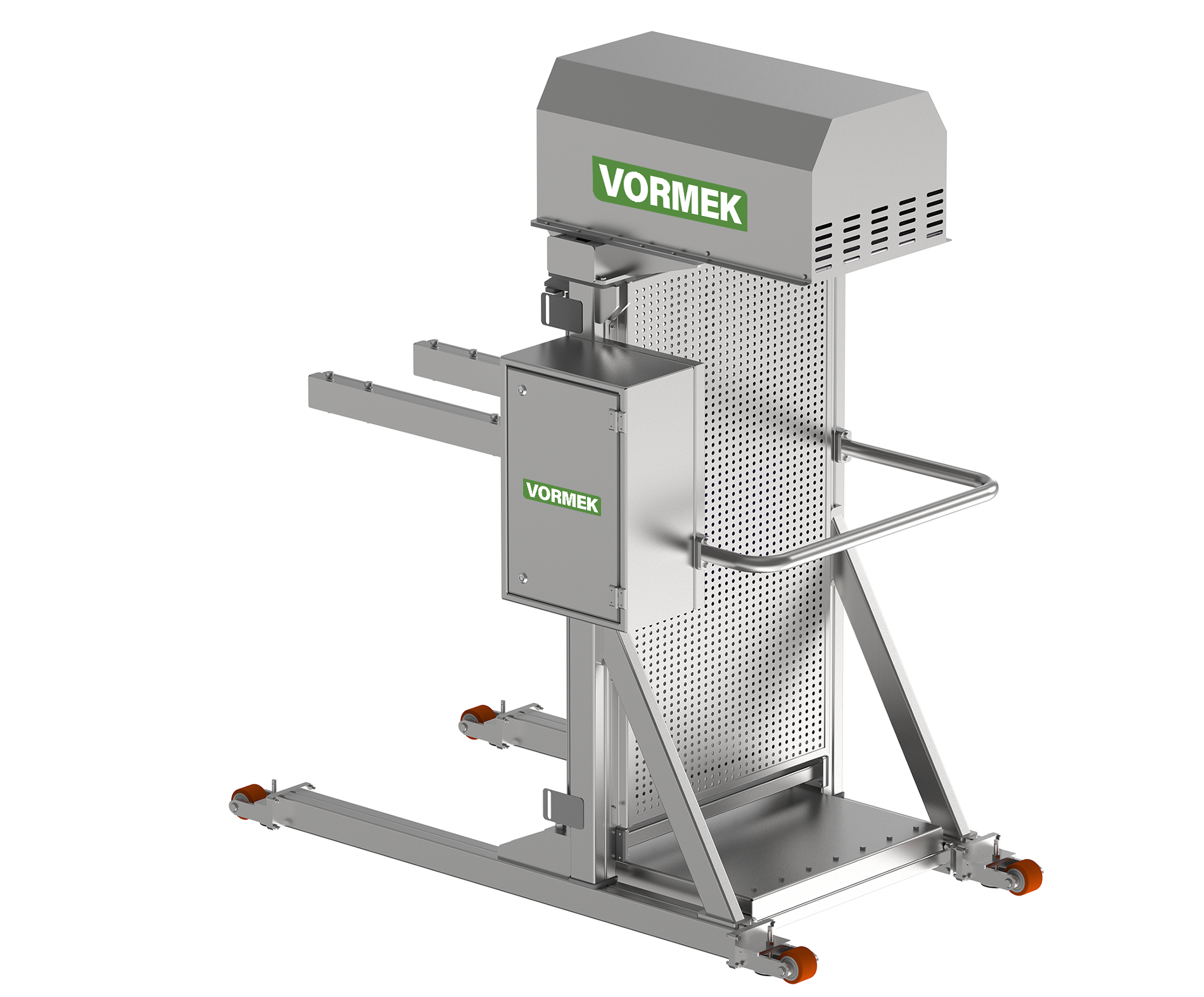

| Independent electrical enclosure | Precise, safe lift control with separate standard electrical system |
| Reduced line downtime | Faster cleaning and re-preparation for the next production run |
Ten Key Advantages – At a Glance
| # | Advantage | Description |
|---|---|---|
| 1 | Safe filler transfer | Precise, reliable movement without damage |
| 2 | Hygienic cleaning enabled | Ground-level positioning for full operator access |
| 3 | Improved operator safety and comfort | Easy access to all filler parts |
| 4 | Packaging machine protection | Prevents spills and water ingress during cleaning |
| 5 | Full stainless steel construction | 304 stainless steel, corrosion-resistant |
| 6 | Stainless steel chain mechanism | Robust, smooth, controlled movement |
| 7 | Adjustable for various fillers | Compatible with different Vormek filler models |
| 8 | Engineered center of gravity | Prevents tipping and maintains stability |
| 9 | Independent electrical enclosure | Safe, precise control system |
| 10 | Reduced line downtime | Faster cleaning and changeover |
