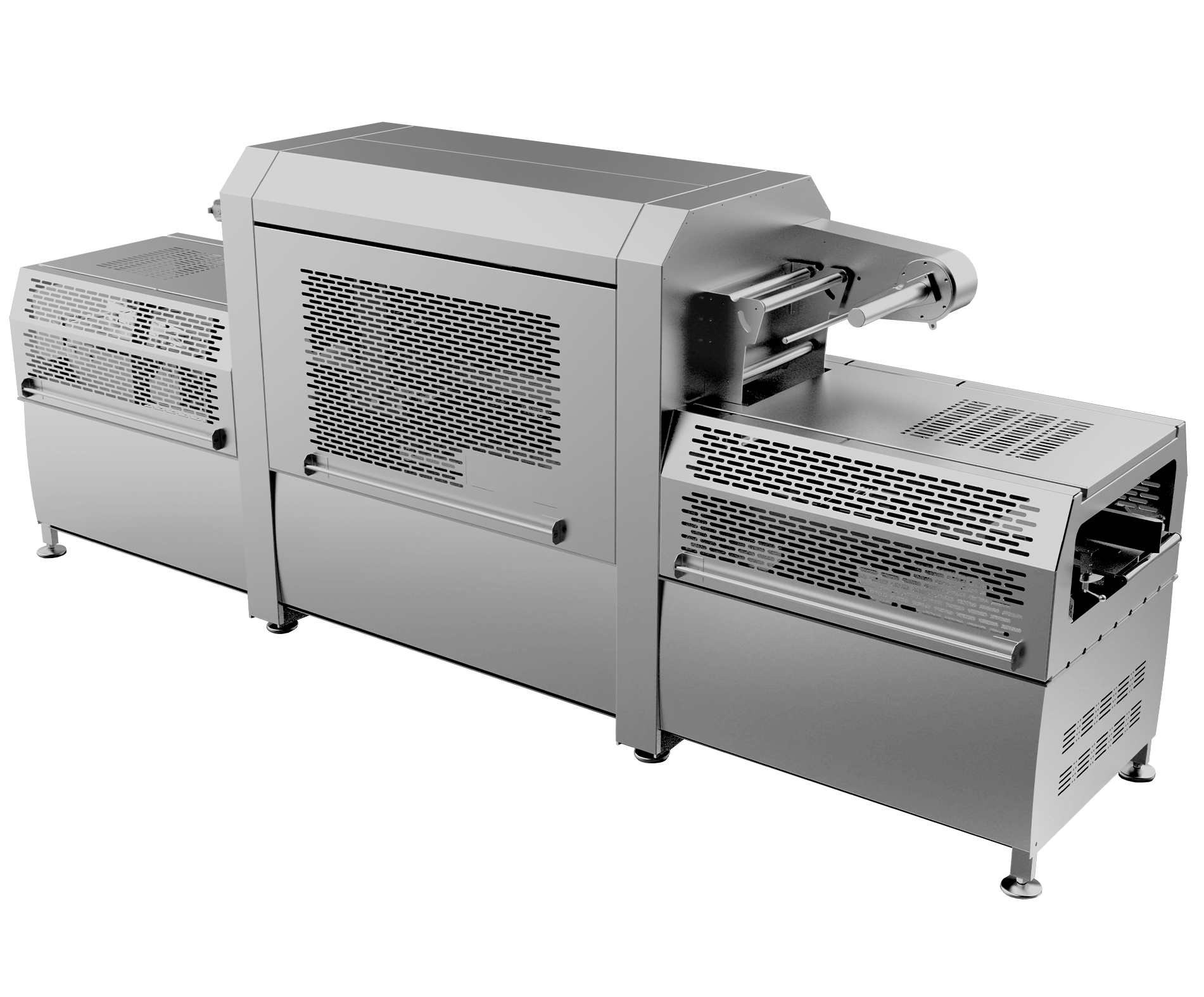

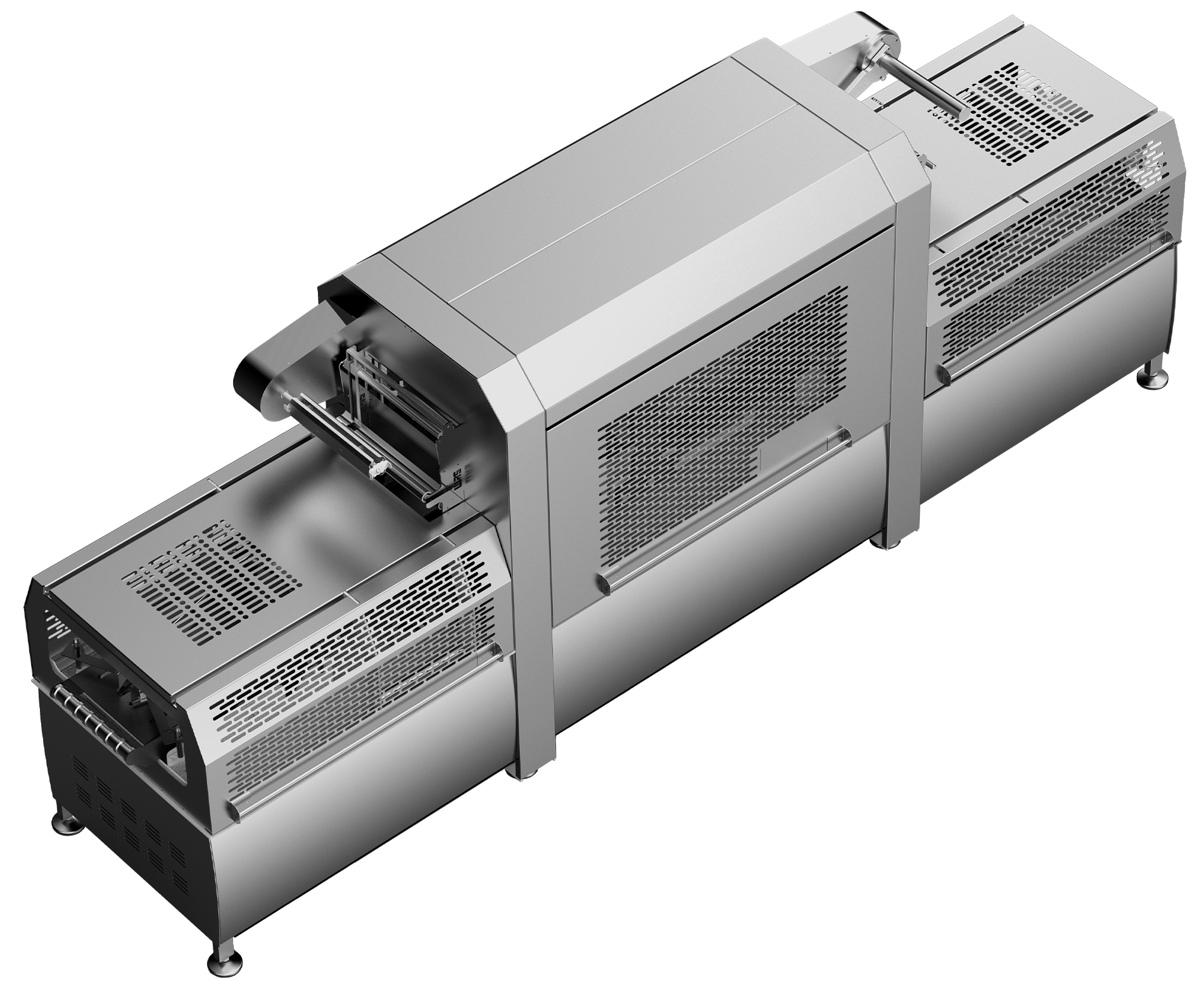

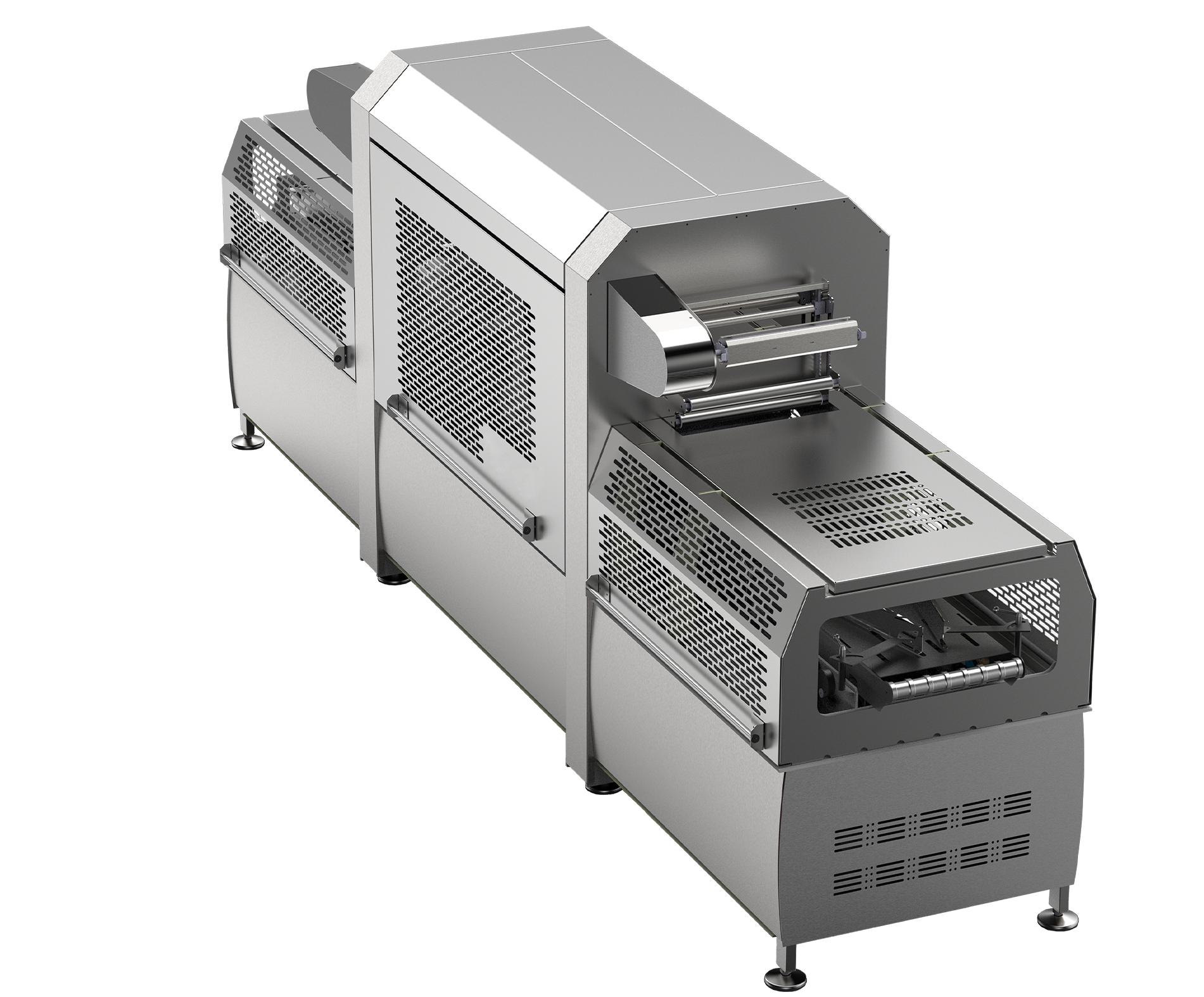

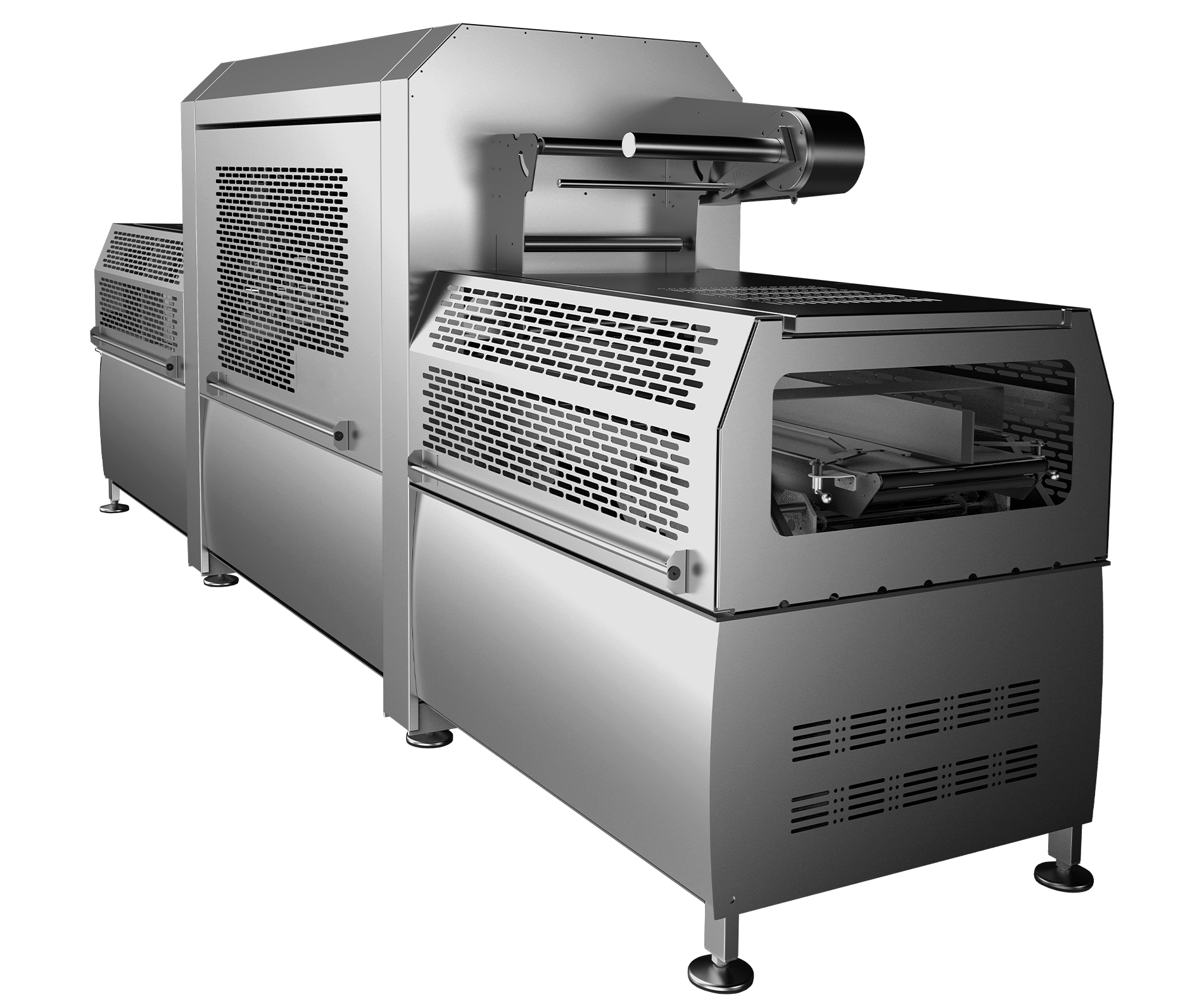

Introduction to the Vormek LuxPacker VTS-700

Imagine a machine that can seal thousands of containers in the shortest possible time—not just one specific product type, but a wide range of containers with varying dimensions and shapes. That is the promise of the LuxPacker. This high-speed, dual-lane machine is designed for food production lines where high throughput is the top priority. But speed is only part of the story. The mold is easily interchangeable, allowing you to switch from one container format to another with minimal downtime—keeping your line running without costly interruptions.

Innovation doesn’t stop there. The LuxPacker supports multiple advanced packaging methods:

• Inside Cut – Clean film cutting with no excess material around the container
• Skin Pack – Full film adhesion to the product surface
• MAP – Extended shelf life through modified atmosphere packaging

If you’re looking for a machine that delivers speed, quality, and packaging versatility in one package, the LuxPacker is the answer you’ve been waiting for. Vormek, with its specialized brand, is the most trusted name in Iran’s tray sealer market—recognized as a professional designer and manufacturer whose products stand shoulder-to-shoulder with European brands.

1. Key Competitive Advantage

Vormek focuses on the high-end segment of the market and is recognized as one of the leading designers and manufacturers of high-speed tray sealers in the region. These machines deliver exceptional performance in high-speed packaging applications, especially where containers feature complex geometries, deep draw depths, or high-sensitivity requirements.

1.2 – Solving the Challenge of Difficult Containers

The reality is that many containers on the market simply cannot be handled properly by conventional machines. In some cases, the container shape prevents smooth infeed, sealing, and outfeed without errors. Many producers resort to semi-automatic machines to reduce process errors. The good news is that Vormek’s high-speed tray sealers—thanks to their professional-grade design—are capable of packaging virtually any container type with high precision.

2. Introduction to Vormek’s High-Speed Tray Sealers

Currently, Vormek’s high-speed tray sealers are available in two main configurations:

2.1 – LuxPacker – Dual-Lane

This machine operates with two parallel lines and is ideal for factories seeking maximum output in minimum time.

2.2 – Quantum Packen – Single-Lane

Although single-lane, this machine sits firmly in the high-speed class and delivers professional, reliable performance for many industrial production lines.

Key Point: Vormek is the only company in Iran designing and manufacturing this class of high-speed tray sealers. At the Asian level, it ranks among the top three producers of this technology.

3. Our Engineering Philosophy for High-Speed Machines

When we talk about high-speed machines, we’re not just referring to cycles per minute. In a professional production line, infeed and outfeed must be carefully coordinated and calculated.

3.1 – Requirements for Achieving True Speed

If a machine is to run at 10, 15, or even 20 cycles per minute, the following must be in place:

• At the infeed: A suitable denester or feeding system must supply containers consistently and without interruption.
• At the outfeed: The transfer system, row aligner, jet printer, labeler, and even pick-and-place robots must be properly designed to handle sealed containers without errors.

Otherwise, increasing machine speed will not deliver real efficiency—it will simply shift the bottleneck to the beginning or end of the line.

4. Production Capacity and Cycle-Per-Minute Concept

4.1 – Practical Example: LuxPacker

As a dual-lane machine, the LuxPacker can package, for example, 8 containers per cycle (two rows of four) for meat tray formats measuring 170 × 220 mm. It runs at a minimum of 10 cycles per minute and can reach up to 15 cycles per minute depending on product type and line conditions.

4.2 – Comparison with European Standards

European manufacturers claim their machines reach up to 20 cycles per minute. Vormek’s machines are also capable of reaching 20 cycles per minute—provided that:

• The product does not spill during high-speed acceleration.
• The product nature allows high-speed handling.
• The packaging method is simple sealing (non-MAP).

Important Note: High speed does not mean every product and container combination can be run at maximum speed. Product type, container shape, and packaging process are the key determining factors.

5. Flexibility in Container Size

One of the key strengths of Vormek’s machines is their high flexibility in container dimensions and shapes.

Practical Example: For smaller containers—such as round containers with a 95 mm opening—the LuxPacker can seal 16 containers per cycle (two rows of eight). At high capacities, the machine’s output scales dramatically.

6. Complete Line Architecture for LuxPacker

A successful high-speed packaging line consists of several precisely coordinated subsystems:

6.1 – Denesting Section

At the line’s start, the denester places multiple containers simultaneously onto the conveyor. This system must be precise, accurately aligned, and error-free.

6.2 – Filling Section

After transfer, containers move under the filling nozzles. Depending on product type, the filler may be:

• Gravity filler (thin liquids)
• Piston filler (pneumatic or servo-driven)
• Volumetric filler (specialty products)
• Multi-head weigher
• Powder filler

Note: In high-speed lines, filling cannot be manual. The entire process must be fully automatic and synchronized with machine speed.

6.3 – Infeed to Mold and Pusher System

After filling, containers enter the tray sealer:

• Containers are arranged in an orderly line on the conveyor.
• The arm opening/closing mechanism picks up the containers.
• Containers are guided into the mold.
• Sealing is performed (simple, MAP, or Skin).
• The same arms remove sealed containers while simultaneously loading new ones—ensuring uninterrupted cycles.

6.4 – Row Alignment and Outfeed

After exiting the mold, the internal row aligner arranges containers into a single line. Containers then pass under a jet printer and labeler before reaching the turntable at line end. At this point, operators have sufficient time for secondary packaging (cartons, crates, etc.). In advanced lines, pick-and-place robots handle container packing automatically.

7. Engineering Considerations for High Speed

When packaging small containers (e.g., 95 mm round format) at 16 units per cycle, the outfeed speed is extremely high. Engineering design must prevent bottlenecks.

7.1 – Principles of Container Transfer in LuxPacker

Vormek’s high-speed machines are designed with:

• Synchronization – Mechanical and automation coordination
• Collision Prevention – No stacking or jamming
• Minimal Contact & Friction – Gentle handling
• Adjustability – Accommodates different container sizes
• Hygiene & Accessibility – Easy cleaning
• Vibration & Noise Reduction – Smooth, quiet operation
• Dynamic motion analysis – Optimized infeed and outfeed paths
• Precision servo motors – Fast acceleration and deceleration

8. Vormek’s Position in Domestic and International Markets

• The only company in Iran designing and manufacturing high-speed tray sealers
• Ranks among the top three producers of this technology in Asia
• These machines represent one of the company’s most significant technological achievements—the result of years of mechanical design experience, process engineering expertise, and deep understanding of the food industry

The LuxPacker is not just a packaging machine; it is a complete, thought-through system for high-capacity production, designed for producers who:

• Have high production volumes
• Must package large quantities within tight timeframes
• Require stability, speed, and precision
• Seek domestic technology competitive with international alternatives

9. Target Audience for LuxPacker

9.1 – Producers Seeking True Market Differentiation

• Need high speed and reduced production time
• Value SKU variety (different containers and packaging types)
• Prioritize hygiene and consumer safety
• Seek complete line automation to eliminate human error
• Want fully automated lines with integrated fillers, denesters, printers, labelers, and robots
• Require advanced packaging methods (MAP, Skin, Inside Cut)

Why High-Speed Tray Sealer Outperforms Linear Fill-Seal Machines:

• Higher hygiene, lower contamination risk – Fully automated film handling, no manual contact
• Consumer safety – Peelable polymer films open cleanly without fragmenting (unlike aluminum foil)
• Flexibility & cost efficiency – One machine handles multiple container formats with mold changes
• Double the speed – Designed for mass production, at least twice as fast as linear fill-seal
• Process variety – Supports MAP, Skin, Inside Cut, Outside Cut, and integrates with fillers, denesters, printers, labelers, and robots

9.2 – Producers Focused on Food Safety and Hygiene

10. Final Summary

The LuxPacker is ideal for producers who:

• Have high production capacity
• Prioritize hygiene
• Seek market differentiation
• Want to enhance product perception
• Plan for export
• Want to eliminate human error
• Are committed to true industrialization

10.1 – Engineering Summary

From a mechanical engineering perspective, these machines are designed with precise dynamic analysis, appropriate servo motor selection, rigid chassis construction, and vibration control—delivering speeds up to 20 cycles per minute without loss of accuracy.

From a food industry machinery perspective, they support advanced packaging methods (MAP, Skin, Inside Cut) and meet the strictest hygiene standards.

From a process engineering perspective, Vormek’s high-speed tray sealers are complete, integrated systems—from denesting to row-aligned outfeed.
