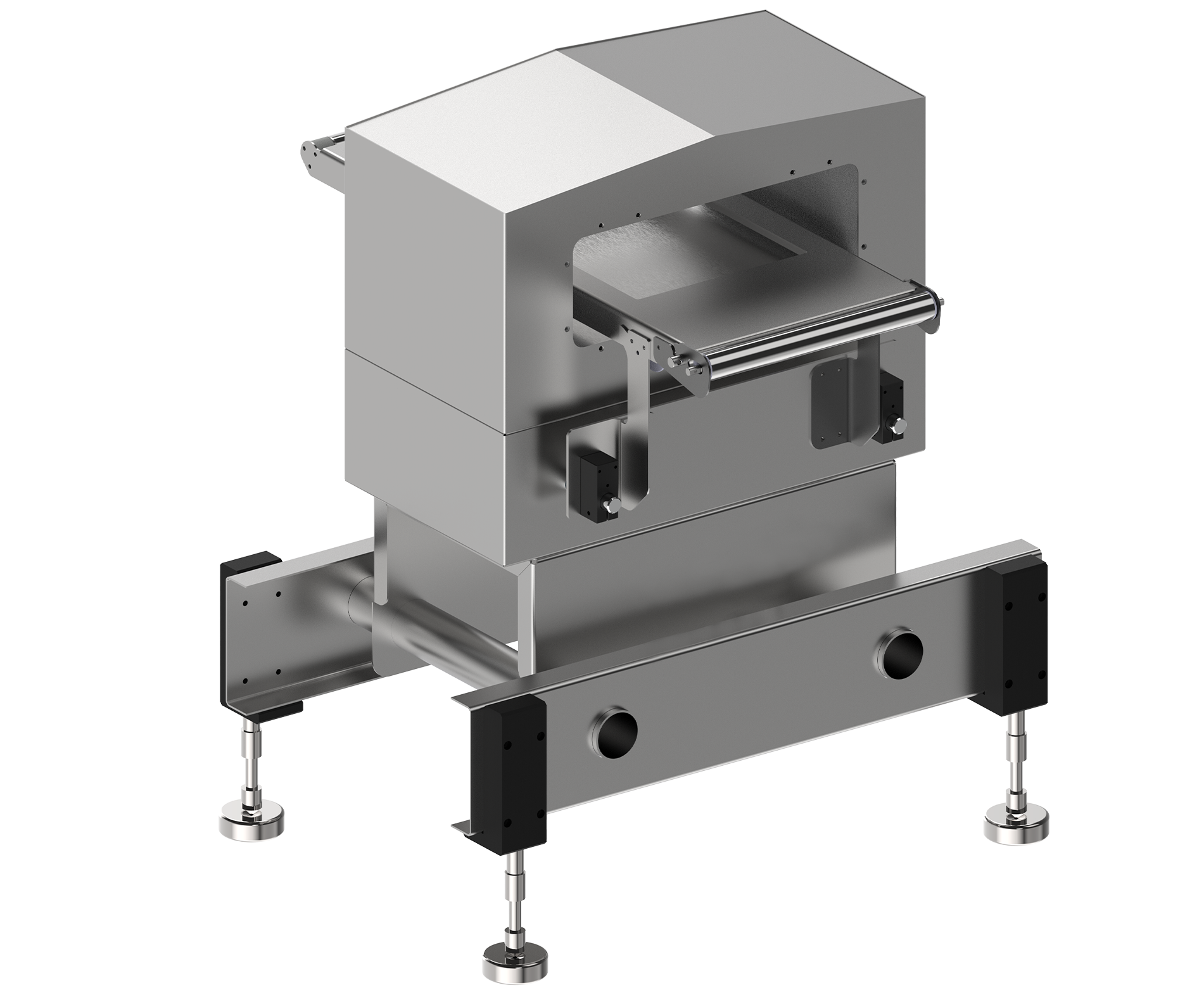

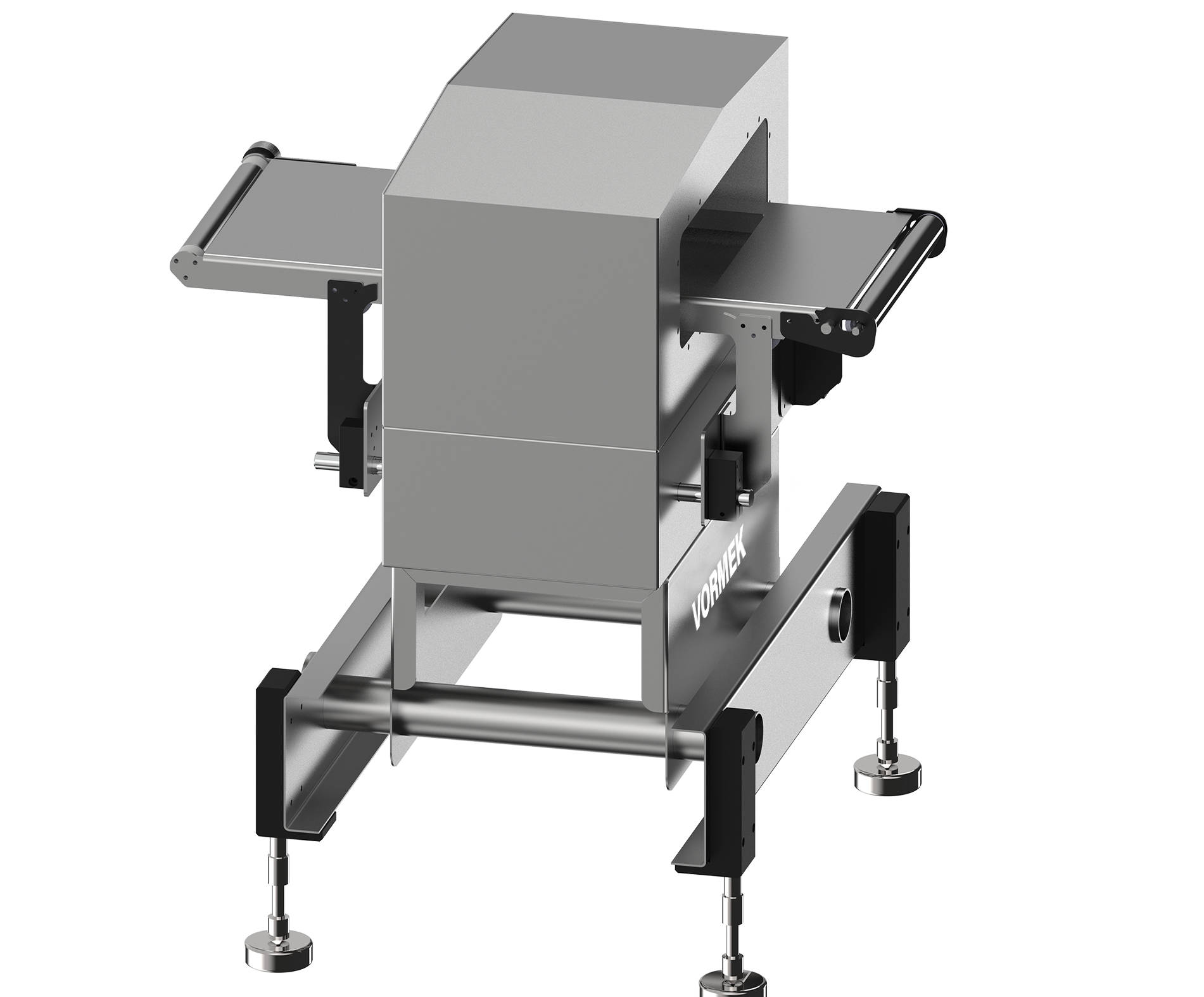

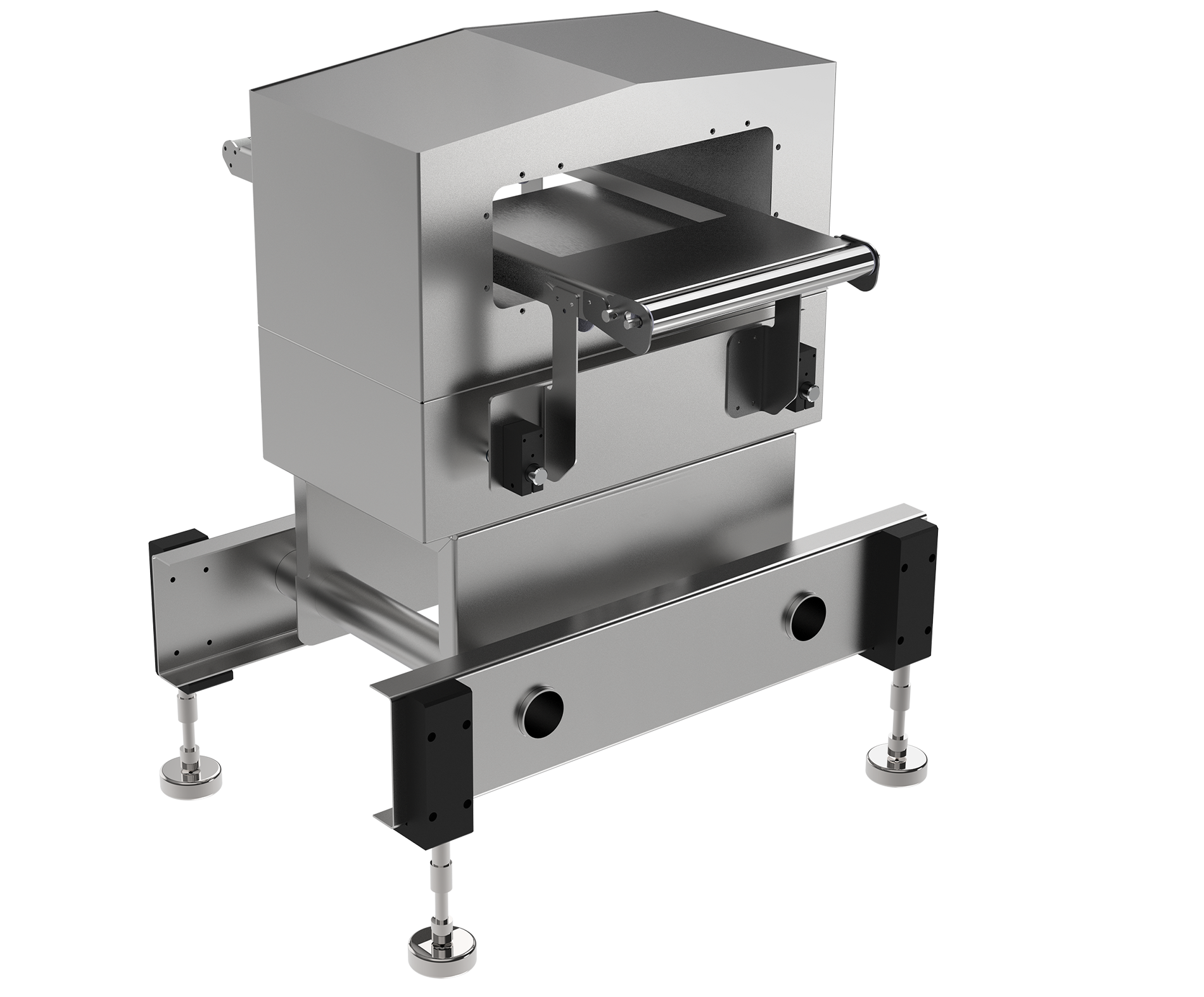

Introduction to the Vormek MetalGuard VMD-500
Metal detectors are essential safeguards in modern food production lines. They ensure that products reaching consumers are free from harmful metallic contaminants—protecting both public health and brand reputation. But how do they work, and why are they so critical?
How Metal Detectors Work
Today’s industrial metal detectors fall into two main categories:
- Balanced coil systems – The most common type, using coils and electromagnetic fields to detect metal.
- Ferrous-in-foil systems – Using strong magnetic fields to detect ferrous (magnetic, iron-containing) contaminants in products.
Metal detectors are available in various configurations to suit different production systems, including:
- Conveyor-type systems
- Gravity/falling systems
- Pipeline/pump systems
- Volumetric/high-performance systems
The most widely used industrial metal detector is the conveyor-belt type, which integrates seamlessly into food production lines due to its range of sizes, belt configurations, and sensor options. Contaminants can be automatically rejected when detected by integrated removal systems.
Which Food Industries Use Metal Detectors?
Metal detectors are vital across a broad spectrum of food industries, including:
- Bakery and pastry
- Dairy, milk, yogurt
- Fruits and vegetables
- Ready meals
- Fish and seafood
- Red meat
- Poultry
- Cereals and pulses
- Beverages, juices, and water
Types of Metallic Contaminants Detected
Three main groups of metallic contaminants can be detected by food metal detectors. The table below summarizes their characteristics:
| Metal Type | Magnetic Permeability | Electrical Conductivity | Ease of Detection |
|---|---|---|---|
| Ferrous (iron, steel) | Magnetic | Good | Easy |
| Non-Ferrous (copper, lead, aluminum) | Non-magnetic | Good to Excellent | Relatively Easy |
| Stainless Steel | Usually non-magnetic | Usually Poor | Relatively Difficult |
Detection capability depends on both conductivity and magnetic permeability:
- Ferrous contaminants are both magnetic and conductive → easily detected.
- Non-ferrous contaminants are non-magnetic but conductive → relatively easy to detect.
- Stainless steel is usually non-magnetic with poor conductivity → more difficult to detect, especially in wet or high-salt products.
For non-metallic contaminants (bone, plastic, glass, ceramic, stone), X-ray inspection systems offer advanced detection capabilities.
Benefits of Using Metal Detectors in the Food Industry
Metal is one of the most common foreign materials found in food products. Metal fragments can unintentionally enter products and endanger consumer health. Manufacturers must minimize and control this risk. Metal detectors provide:
- Ensured food safety for consumers
- Achievement of food quality standards
- Protection of equipment from damage
- Compliance with food regulations
- Prevention of product returns
Where Are Metal Detectors Installed?
Proper placement is essential for effective metal detection. Contaminants can enter the product at almost any point in the production line, making the end of the line the most effective location for final inspection. However, multiple inspection points are recommended:
- Raw material inspection – Removes metal before it breaks into smaller, harder-to-detect fragments.
- Critical Control Points (HACCP) – Detects machine breakdowns (e.g., broken blades) during production.
- Final product inspection – Ensures finished goods are safe for consumers.
If the detector is used to protect machinery, it is installed immediately before the equipment in question.
Metal Detector Sensitivity
The standard detection requirement for final products is:
- Ferrous spherical particles: 2.0 mm
- Non-ferrous spherical particles: 2.5 mm
- Stainless steel spherical particles: 3.5 mm
Only detectors meeting these standards are suitable for installation in packaging lines.
Factors Affecting Metal Detector Sensitivity
Several product-related factors influence detection sensitivity:
| Factor | Effect |
|---|---|
| Product composition | High salt content (e.g., ham) can affect electrical conductivity; blood and iron in meat may also impact sensitivity |
| Product characteristics | Whole-muscle vs. emulsified products produce different signals; denser products affect detection |
| Temperature | Temperature variations alter the signal—warm bread may produce a different response than bread at room temperature |
| Packaging materials | Aluminum foil and certain metallized films can create misleading signals |
| Moisture content | High-moisture products (meat, dairy) can weaken signals, making small fragments harder to detect |
Metal Detector Frequencies
Food metal detectors operate across a range of frequencies (50 kHz to 1000 kHz) to identify metallic contaminants. The optimal frequency depends on:
- Type of metal
- Position and orientation of the metal particle
- Shape of the metal particle
Stainless steel, for example, has little or no magnetic properties and requires higher frequencies for detection. Multi-scan technology allows operators to select up to five frequencies and scan through them rapidly—significantly increasing detection probability and virtually eliminating the chance of contaminants passing through undetected.
How to Choose the Right Metal Detector
With the growing market, selecting the right metal detector can be challenging. A suitable detector should be:
- Accurate and reliable
- Easy to clean and sanitize
- Simple and safe to operate
- Compatible with line speed
Key considerations before purchase:
- Complete product description (ingredients, physical properties, packaging)
- Installation site conditions (compressed air, power supply)
- Operating environment (temperature, humidity, corrosive substances)
- Process description (how the product moves through the installation point)
- Control type (manual, automatic, semi-automatic)
- Reject mechanism requirements
Quality Enhancement with Metal Detectors
Metal detectors deliver value across three key areas:
| Application | Benefit |
|---|---|
| Raw material inspection | Reduces defect-related costs; evaluates suppliers through early detection |
| Final product inspection | Ensures only pure, metal-free products reach customers |
| Process control (equipment protection) | Prevents damage to production machinery; maintains product quality and output stability |
| Critical control points (HACCP) | Identifies points where failure of control would pose an unacceptable health risk |
Why Choose Vormek’s MetalGuard
Metal detectors are a critical component of any food contamination control program. When properly selected, installed, used, and maintained, they improve product quality and reduce waste.
With years of experience in manufacturing and installing high-quality metal detectors, Vormek offers the expertise and tools to help you select the right system for your operation. Regardless of your industry, our machines are adapted to your working environment and provide reliable data on metallic contaminant levels in your products.
Trust the Vormek brand for your metal detection needs. For pricing and further information, contact our expert team for guidance.
